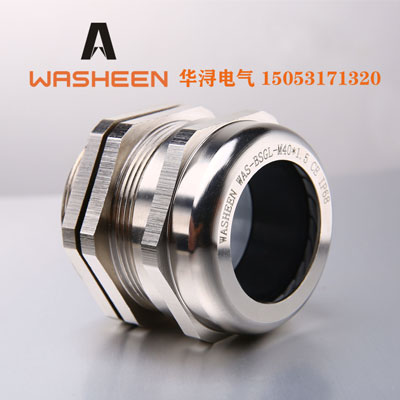

WAS-SSGL 不锈钢电缆接头 产品材质：A.C.F部位采用304不锈钢制成，B.E部位采用橡胶制成，D部位采用白色尼龙制成。 螺纹规格：公制（M） 工作温度：-40℃至＋110℃，短时可达＋120℃。 产品颜色：A.C.F部位为金属色，B.E部分为黑色，D部分为白色。 防护等级：IP68 产品特性：特殊夹紧爪与密封件相扣之设计，配合迫紧头装配省时便利，夹紧电缆范围大，抗拉力特强，可防水、防尘、防盐、耐酸碱、耐腐蚀、酒精、油、脂。 规格选型： 公制螺纹 (M) 订货号 | 公制螺纹(M) | 卡套范围(mm) | AG外径(mm) | GL(mm) | 包装单位(个/包) | WAS-SSGL-M12 | M12X1.5 | 3-6 | 12 | 6 | 50 | WAS-SSGL-M14 | M14X1.5 | 3-6 | 14 | 6 | 50 | WAS-SSGL-M16 | M16X1.5 | 4-8 | 16 | 7 | 50 | WAS-SSGL-M18 | M18X1.5 | 6-10 | 18 | 8 | 50 | WAS-SSGL-M20 | M20X1.5 | 6-12 | 20 | 8 | 50 | WAS-SSGL-M22 | M22X1.5 | 10-14 | 22 | 9 | 50 | WAS-SSGL-M24 | M24X1.5 | 10-14 | 24 | 10 | 25 | WAS-SSGL-M25 | M25X1.5 | 10-14 | 25 | 10 | 25 | WAS-SSGL-M27 | M27X2.0 | 13-18 | 27 | 11 | 25 | WAS-SSGL-M30 | M30X2.0 | 13-18 | 30 | 11 | 25 | WAS-SSGL-M32 | M32X1.5 | 15-22 | 32 | 11 | 25 | WAS-SSGL-M33 | M33X2.0 | 15-22 | 33 | 11 | 20 | WAS-SSGL-M36 | M36X2.0 | 18-25 | 36 | 11 | 20 | WAS-SSGL-M40 | M40X1.5 | 18-25 | 40 | 11 | 20 | WAS-SSGL-M42 | M42X2.0 | 22-28 | 42 | 12 | 20 | WAS-SSGL-M48 | M48X2.0 | 25-32 | 48 | 13 | 10 | WAS-SSGL-M50 | M50X1.5 | 25-32 | 50 | 13 | 10 | WAS-SSGL-M54 | M54X2.0 | 32-38 | 54 | 14 | 10 | WAS-SSGL-M56 | M56X2.0 | 32-38 | 56 | 14 | 10 | WAS-SSGL-M60 | M60X2.0 | 37-44 | 60 | 14 | 10 | WAS-SSGL-M63 | M63X1.5 | 37-44 | 63 | 14 | 10 | WAS-SSGL-M64 | M64X2.0 | 37-44 | 64 | 14 | 10 | WAS-SSGL-M72 | M72X2.0 | 42-52 | 72 | 15 | 5 | WAS-SSGL-M80 | M80X2.0 | 50-60 | 80 | 18 | 5 | WAS-SSGL-M85 | M85X3.0 | 59-72 | 85 | 20 | 5 | WAS-SSGL-M100 | M100X2.0 | 71-82 | 100 | 22 | 5 |
德制螺纹 (PG) 订货号 | 德制螺纹(PG) | 卡套范围(mm) | AG外径(mm) | GL(mm) | 包装单位(个/包) | WAS-SSGL-PG7 | PG7 | 3-6 | 12.5 | 8 | 100 | WAS-SSGL-PG9 | PG9 | 4-8 | 15.2 | 8 | 100 | WAS-SSGL-PG11 | PG11 | 5-10 | 18.6 | 8 | 50 | WAS-SSGL-PG13.5 | PG13.5 | 8-12 | 20.4 | 9 | 50 | WAS-SSGL-PG16 | PG16 | 10-14 | 22.5 | 10 | 50 | WAS-SSGL-PG21 | PG21 | 13-18 | 28.3 | 11 | 50 | WAS-SSGL-PG29 | PG29 | 18-25 | 37.0 | 11 | 20 | WAS-SSGL-PG36 | PG36 | 25-32 | 47.0 | 13 | 10 | WAS-SSGL-PG42 | PG42 | 32-38 | 54.0 | 13 | 10 | WAS-SSGL-PG48 | PG48 | 37-44 | 59.3 | 14 | 10 |
英制螺纹 (G) 订货号 | 英制螺纹 (G) | 卡套范围(mm) | AG外径(mm) | GL(mm) | 包装单位(个/包) | WAS-SSGL-G1/4 | G1/4 | 3-6 | 13.2 | 6 | 100 | WAS-SSGL-G3/8 | G3/8 | 4-8 | 16.6 | 7 | 50 | WAS-SSGL-G1/2 | G1/2 | 8-12 | 20.4 | 8 | 50 | WAS-SSGL-G3/4 | G3/4 | 13-18 | 26.6 | 11 | 50 | WAS-SSGL-G1 | G1 | 15-22 | 33.4 | 11 | 50 | WAS-SSGL-G1-1/4 | G1-1/4 | 22-28 18687949311 | 41.5 | 12 | 10 | WAS-SSGL-G1-1/2 | G1-1/2 | 25-32 | 47.0 | 13 | 10 | WAS-SSGL-G2 | G2 | 37-44 | 60.0 | 14 | 5 |
|
