机箱数据

机箱采用铝质材料，独特的散热设计，带给您全新的散热理念。 在无风扇的情况下，最高可以支持 VIA 1.5 GHz 和ATOM N270的CPU正常运行，其独特的设计使整个系统更加轻便﹑紧凑.
用途广泛
BRIK系列无风扇工控机，机型小精巧，多用于网络安全设备，VPN ，Friirwall，瘦客户机
详细规格
·尺寸    49.7 H x 187 W x 130 D mm(2.5寸硬盘)
            71.2 H x 187 W x 130 D mm(3.5寸硬盘)
·材质 铝质
·颜色 黑色&银色
·重量 1.3Kgs(含主板) (2.5寸硬盘)
         1.6Kgs(含主板) (3.5寸硬盘)
 ·存储装置空间 1 x 2.5” /3.5” 硬盘

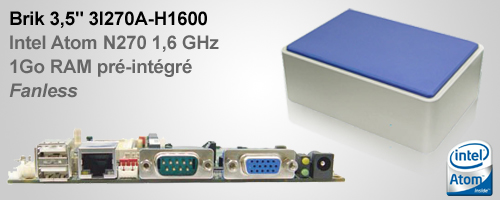

3I270A主板资料

Features:

3.5" HDD , Intel Atom , 6 COM , 2 SATA , NAND flash memory , HD Audio , 6W stereo audio amplifier

Specifications:

. CPU type:

   Intel Atom N270 1.6GHz processor

. Front Side Bus:

   533 MHz

. MB Chipset :

   Intel 945GSE + ICH7M (82801GBM)

. Graphics:

   Integrated with Intel 945GSE

   Dynamic Video Memory Technology(DVMT 3.0)

. Memory:

On board DDRII module 1GB

. NAND flash memory (option):

   Support Compact Flash card type II for ATA interface

   On board SSD 1/2/4/8GBytes (option)

. LAN:

   1 x Intel 82574L or Realtek RLT8111C 10/100/1000 Mbps

. IO function:

   5 RS232 or RS485(option)+ 1 RS422/485 or RS232(Option)

. Audio:

   Intel High Definition Audio Specification Rev 1.0 compliant

   Line-out / Mic-in / Lline-in support

. USB:

   7 x USB 2.0 (2 external + 5 internal ports)

. SATA:

   Supports up to Two channel SATA connectors

. DIO & WDT:

   Hardware digital Input & Output, 8xDI / 8xDO

   Hardware Watch Dog Timer, 0~255 sec programmable

. Audio Amplifier (option):

   6-W/CH Into an 8-Ω Load from a 12-V Supply

   Up to 92% Efficient, Class-D operation

   Differential Input minimizes Common-Mode noise

. Expand interface:

   1 x Mini PCI socket for only PCI rev 2.2 interface

   2 x PCIe mini card support USB interface and PCIe interface

. Power:

   On board DC +12V±5% convert to +3V/+5V for system

. Dimension:

   145 x 102 mm (3.5 inch)

. Operation Temperature:

   0 ~ 60°C

. Operation Humidity:

  5~95% @ 60°C, non-condensing

Ordering Information :

. 3I270A-H16-00 : Realtek GbE, 1GB memory on board

Available Chassis:

Please upgrade the hard drive to industrial grade for better temperature performance.
