| Model:TPL-AC-09006 |
Description:

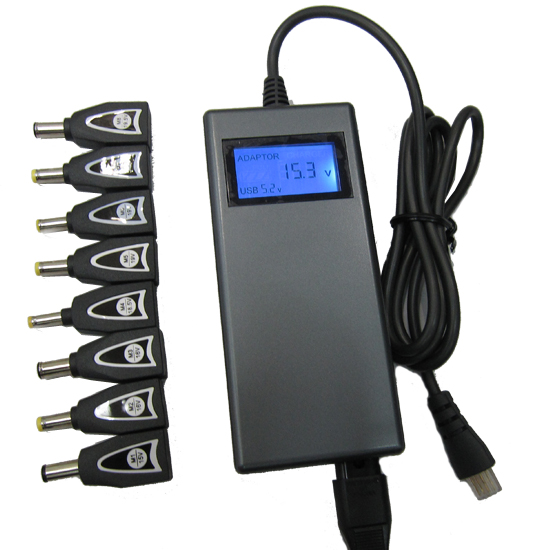

New Model 90W Universal AC-DC Laptop Adapter |
| LED display indicates output and USB port voltage,Auto-Adjust voltage |
| Input Condition : 100 to 240VAC 50/60 Hz |
| Input Rated Voltage : 100 to 240VAC |
| Input Voltage Range : 90 to 264VAC |
| Input Rated Frequency : 50/60Hz |
| Input Frequency Range : 47Hz to 63Hz |
| Efficiency : 80% Min |
| Rated Output Power: 90W |
| Rated Output Voltage & Current:15V/16V/18V.5/19V/19.5V USB5V 1A |
| Output Ripple And Noise : 1% Max |
| Protection : OCP OVP SCP OPP |
| Operating Temperature: -10 to 70℃ |
| Storage Temperature: -10 to 85℃ |
| Relative Humidity: 10 to 90% |
| Charging the battery (if needed) and maintaining its charge. |
| Many AC cord options to meet different areas requirements. |
DC Plug:8 Tips
M1 -15V-Φ6.3*3.0 M2 -16V-Φ5.5*2.5-yellow
M3 -16V-Φ6.5*4.4 M4-18.5V-Φ4.8*1.7
M5 -19V-Φ5.5*2.5-black M6 -19V-Φ5.3*3.0
M7 -19V-Φ5.5*2.1 M8-19.5V-Φ6.5*4.3 |
| Fit For: |
Acer, Asus, Apple, Dell, Fujitsu, Gateway, HP/Compaq, IBM,
NEC, Samsung, Sony, Sharp, Toshiba etc series laptops/Notebooks |
