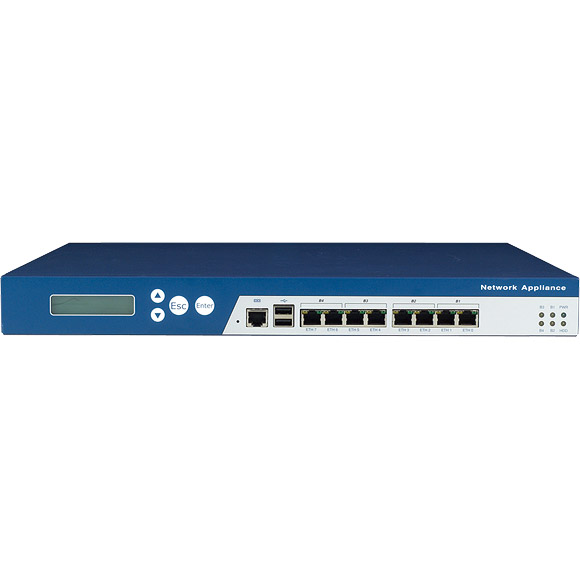

Intel® Core™ 2 Quad/Core™ 2 Duo/Pentium® Dual-Core/ Celeron® 1U机架式整机，带8网口
产品配置
机箱：DTX-105B
主板：NSB 3110
CPU：INTEL Q9300
内存：4G DDR3
硬盘：500G SATA
电源：300W电源(可选配6个千兆网口)
端口说明
4个intel 82574L千兆网口（支持BY PASS功能）,1个VGA口，1个CONSOLE口，2个USB口，1个板载CF卡卡槽，1个PCI-E插槽，1个MINI-PCI插槽。可扩展网口模块，具体可扩展规格：2个电口2个光口、4个电口、4个光口、4个电口4个光口、8个电口、8个光口。
主要特征
1U机架式网络安全平台，整机尺寸426mmx 238mm x 44mm，主板采用INTELG41芯片组，CPU可采用INTEL酷睿四核处理器，整机提供1个PCI扩展插槽。机器支持BYPASS功能，网络唤醒功能。机箱支持前端LCD模块。
|
Specifications |
|
主板 |
- NSB 3110
- Support Intel® Core™ 2 Quad/Core™ 2 Duo/Pentium® Dual-Core/Celeron® Processors in 775-pin, LGA775 package
- Support 800/1066/1333 MHz FSB
- Intel® G41 and ICH7R Chipset
|
|
内存 |
- 2 x 240-pin DDR III 1066 DIMM Sockets, up to 4GB Non-ECC DDR3 SDRAM
|
|
网络特点 |
- Lan Chipset: Intel® 82574L
- Support 10/100/1000 link speed
- LAN Bypass: 4 pairs
|
|
扩展 |
- Support 1 x PCI-E*8 Slot
- Support 1 x Mini-PCI Slot
|
|
I/O接口-前面板 |
- Support 2 x 16 Characters LCD module, PIO interface
- HDD access/Power/LAN status/Bypass status LEDs
- 2 x USB 2.0 ports
- 1 x RJ45 type Console port
- 1 x Software button
- 8 x Copper LAN ports
|
|
I/O接口-后面板 |
- 1 x Expansion slot
- 1 x VGA port
- 1 x Power switch
|
|
设置 |
- 1 x On-board CompactFlash Socket
- 1 x Internal 3.5" HDD driver bay
|
|
电源输入 |
- Support 200W ATX Power Supply
|
|
尺寸规格 |
- Chassis Dimension: 426mm (W) x 365mm (D) x 44mm (H)
- Carton Dimension: 560mm (W) x 570mm (D) x 190mm (H)
|
|
认证 |
- CE approval
- FCC Class A
- UL
|
|
重量 |
- Without packing: 6.5kg
- With packing: 10kg
|
订购信息
- Barebone NSA3110(P/N : 10S00311000X0)Support Intel®/Core™ 2 Quad/Core™ 2 Duo/Pentium® Dual-Core/Celeron®,2 DDR III memory slots, 8 Gigabit Ethernet LAN ports, Compactfl ash Socket,VGA, USB port, One PCI-e x8 Expansion slot without LCM and Membrane.
- Barebone NSA3110-C4(P/N : 10S00311000X0)Support Intel®/Core™ 2 Quad/Core™ 2 Duo/Pentium® Dual-Core/Celeron®,2 DDR III memory slots, 4 Gigabit Ethernet LAN ports, Compactfl ash Socket,VGA, USB port, One PCI-e x8 Expansion slot without LCM and Membrane.
|
