感式传感器
|

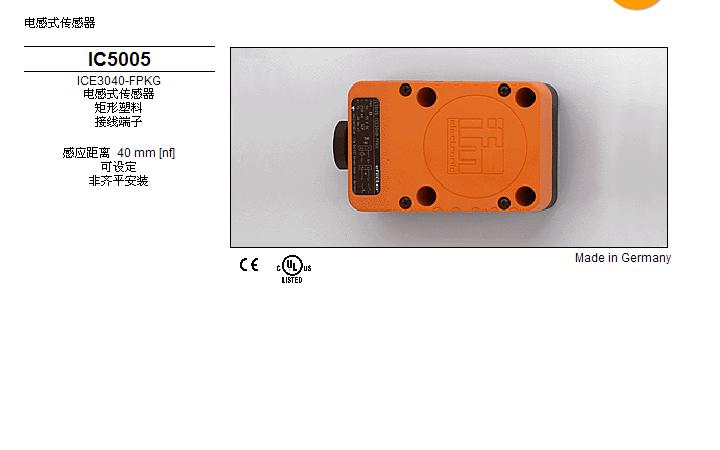

| IC5005 |
ICE3040-FPKG
电感式传感器
矩形塑料
接线端子
感应距离 40 mm [nf]
可设定
非齐平安装 | |
|
|
| |
|
| 电气设计 |
|
DC PNP |
| 输出功能 |
|
常开 / 常闭可选 |
| |
|
| 工作电压 [V] |
|
10...36 DC |
| 负载电流 [mA] |
|
250 |
|
|
|
| 短路保护 |
|
脉冲 |
| 反相保护 |
|
是 |
| 过载保护 |
|
是 |
| 电压降 [V] |
|
< 2.5 |
|
|
|
| 电流损耗 [mA] |
|
< 15 (24 V) |
| |
|
| 实际感应距离 (Sr) [mm] |
|
40 ± 10 % |
| 工作距离 [mm] |
|
0...32.4 |
| 开关点偏移 [Sr的百分比] |
|
-10...10 |
| 迟滞 [Sr的百分比] |
|
1...15 |
| 开关频率 [Hz] |
|
15 |
| 修正系数 |
|
钢(St37) = 1 / 不锈钢约0.7 / 黄铜约0.4 / Al 约 0.3 / Cu约0.2 |
| |
|
| 环境温度 [°C] |
|
-25...80 |
| 防护等级 |
|
IP 65, II |
| EMC电磁兼容 |
|
|
| MTTF [年] |
|
1261 |
| 外壳材料 |
|
PPE |
| 功能显示 |
|
|
| 开关状态 LED |
|
黄色 |
| |
|
| 接口 |
|
接线端子至2.5 mm²; 电缆直径 7...13 mm, 电缆螺旋套管接头M20 x 1.5 |
| |
|
| 重量 [kg] |
|
0.267 |
| 配件(同时供货) |
|
螺丝刀 |
| |
|
