一、主要特点：

1. 适用各种规格抽式面纸纸盒及食品纸盒的上胶封口。
2. 集电气一体自动化控制生产,性能稳定,操作轻松简单。
3. 工作部件采用不锈钢材料。

二、适用纸盒规格尺寸：

最大可包装尺寸 290X150X120mm（不可调整） 备注：需按实际纸盒材质样版
最小可包装尺寸 100X70X25mm（不可调整）  备汪：需按实际纸盒材质样版

三、主要技术参数：

电    源 220V 50Hz 二相
功    率 2.4KW
生产速度 40-80盒/分
外型尺寸 0.85X0.66X1.5M
机 械 重 50KG
此上为设计参数 具体按机器实际为准.如需调节要客方给持供调节要求。

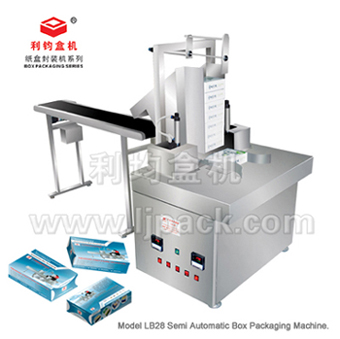

Model LB28 Semi Automatic Box Packaging Machine

First, Main features:
1. It can be used for all kinds of plastic seal of pumping tissues boxes and food boxes;
2. Electric and automatic control technology to product, stable performance, easy and simple for operation.
3. Working parts is made of  stainless steel.

Second, Carton Size:
Maximum packaging size: 290X150X120mm (not adjusted)  Note: It is based on the  actual carton packaging material
Minimum packaging size :100X70X25mm (not adjusted)    Note: It is based on the  actual carton packaging material

Third:Main technical parameters:
power supply: two-phase220V 50Hz
power:2.4KW
production rate :40-80 boxes / min
appearance dimensions: 0.85X0.66X1.5M
mechanical weight :50KG
Those above is designed parameters,the specific is based on the  practical situation, We need the adjusted requirements provided from the customers if it have to be regulated.
