性能特点：
LQ30装盒机集开盒、装料、折盒、喷胶、封盒为一体, 适用于多种规格的纸盒包装
由PLC微电脑控制，并配有国内先进的全自动高速双喷头热胶机。有人机界面控制、自动报警、 故障提示、调节纸盒大小、操作简单、维护方便等优点。其整个机架及接触物料的部件均采用优质不锈钢和铝材, 表面进行了抛光处理, 外形美观大方, 不污染环境。

技术参数：
电源: 220V
功率: 4kW
频率: 50HZ
气压: 0.6kg/cm
纸厚度: 250-350g/m2
包装速度: 30/min
机器尺寸: 3050X860X1600mm
最大包装尺寸: 230X200X65mm
最小包装尺寸: 180X100X30mm

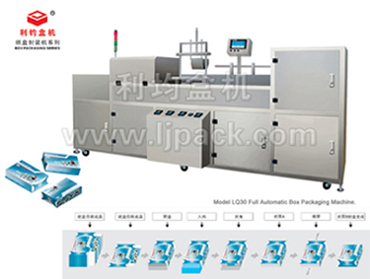

LQ30 Full Automatic Carton Packaging Machine

Features:
LQ30 carton packing machine integrates with carton opening, feeding, folding, glue-spraying, and sealing. It can be used for various specifications of cartons.
 It is controlled by PLC microcomputer and equipped with the most advanced hot-melt glue system with high speed dual guns and hoses. Furthermore, it possesses the advantages of human-machine interface operating, auto-alarming, malfunction-indication, automatic sized adjustment,easy operation and convenient maintenance, etc. The structure and parts of contact products are made of high quality stainless steel and aluminum materials. Besides, the surface of those parts has been polished for nice appearance and is unpolluted.

Specifications:
Power supply: 220V
Power (Kw): 4kW
Frequency: 50HZ
Gas pressure: 0.6kg/cm
Paper thickness range: 250-350g/m2
Speed: 30 cartons per minute
Machine dimension: 3050X860X1600mm
Maximum Packing size: 230X200X65mm
Minimum Packing size: 180X100X30mm
