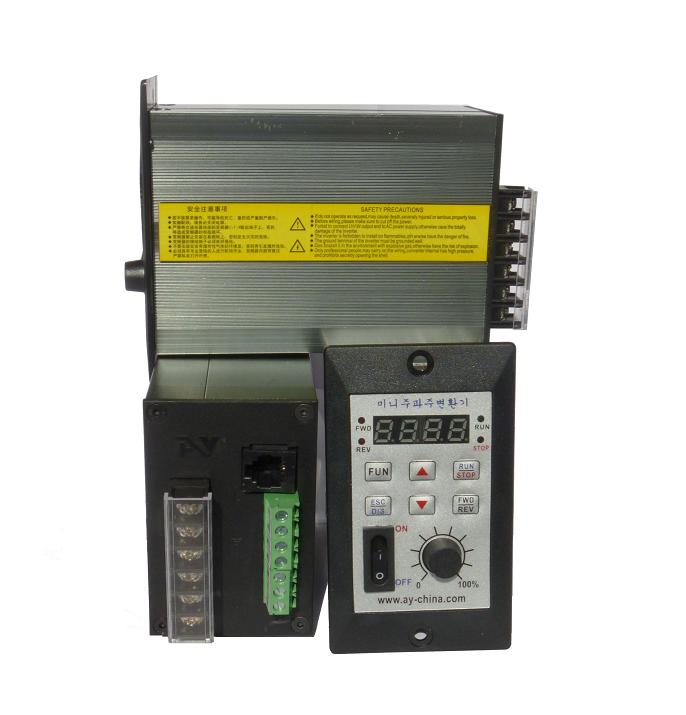

AS01-4W三相交流电机驱动器

(AS01-4W Three-phase ac motor drive manual)

User manual

此驱动器适用于单相220V交流电输入，驱动25~400W三相电机调速。(This drive apply to single-phase AC 220V input , and drive 25~400W three-phase motor to adjust speed.)

(The manual provides the user for installation, debugging and maintenance)

(Before use, please read, and keep.)



使用环境（Use of the environment）：

电源：单相AC220V±40%

（Power supply: single phase AC220V±40%）

温度：-10℃~50℃

(Temperature: -10℃~50℃)

湿度：0%~65%

(Humidity: 0% ~ 65%)

注意事项(note)

接线时，务必关闭电源。(When wiring, be sure to turn off the power.)

接线时务必确认，绝不可将AC电源接至电机输出端。

(When wiring, be sure to confirm, will not be AC power connected to the output end of the motor .)

使用现场无凝露，粉尘，无腐蚀性液体，气体。

(The use of the site without dewing, dust, no corrosive liquid, gas.)

安装部位坚固，无振动。

(The installation part is firm, no vibration.)

因整体较小，请处理好接线线头。

(Due to the overall smaller, please handle connection  wiring thread.)

使用环境温度过高时，请留出足够的散热空间。

（If the ambient temperature is too high, please leave enough space for heat dissipation.）

面板电位器控制

 Panel potentiometer control
