| 产品型号: |
SMK480 |
| 产品价格: |
价优
|
| 产品品牌: |
洛讯 |
| |
|
|
 |
| 会员在线咨询，免费获取《电气自动化简讯》双月刊 |
|
|
| 所在区域： |
北京.北京 |
| 办公地址： |
北京市海淀区清河西街71号鑫一德大厦320室 |
| 邮 编： |
100085
|
| 电 话： |
82755519
|
| 移动电话： |
|
| 传 真： |
85755968
|
| 电子邮件： |
sunkvm@163.com |
|
|
|
详细描述: |
| |
 |
| Specification |
Model No.
|

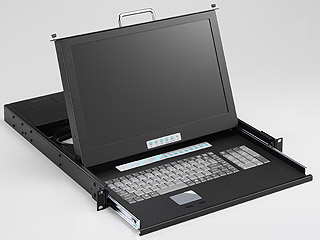

SMK-480
|
Ports Switch for PC
|
8 ports KVM switch. Daisy chain level to 8 levels, PC connection up to 120 sets |
Weight
|
11.5kgs |
Dimension (W x H x D)
|
17.42" x 1.75" x 20.0"
(442.4mm x 44.0mm x 508.0mm) |
Power Supply
|
DC +12V
|
Size
|
1U 19" Rackmount Type
|
* Extension Cable
|
3 in 1
|
* Extension Rail
|
Up to 35.4" (900mm)
|
* Construction Material
|
Industrial Metal
|
Keyboard
|
105 keys, Notebook type
|
Mouse
|
Touchpad
|
* Color
|
Black
|
Protection
|
Front panel with Thumb screw
Rail with self-locking device
LCD back-light will be turned-off when
the screen set is turned down
|
* KVM switch
|
Build-in 8(480) or 16(490) ports KVM Switch
|
* Security Lock
|
Thumb screw x 2
|
Operation Temperature
|
0-50?C (32-122癋)
|
| Display |
Diagonal
|
15" (16:9) 17" (16:9)
|
| LCD Resolution |
1280(X3) x 768 |
| Contrast Ratio |
600:1 |
| Brightness |
450 nits |
| Frame Rate |
60Hz |
| LTCFL |
CCFL life Time 35,000 hr. |
|
|
Min. |
Typ. |
Max. |
Viewing Angle
|
Horizontal |
(75) |
(85) |
|
| Vertical |
Response Time
|
(msec)Raising + Falling |
- |
(25) |
(40) |
| KVM Switch |
| Operating System |
Win 95/98/98SE/2000/XP, DOS, Win 3.X, WinNT, Netware, SCO Unix, HO Unix, Linux
|
| Hot Plug |
Add PCs or Remove Connected PCs for Maintenance without powering down the KVM switch for PCs
|
| Auto Scan Mode |
5s-99s |
| Accessories: 8 Port |
| KVM Drawer Unit |
x 1 |
| Extension Bracket |
x 2 |
| Power Cord |
x 1 |
VGA HDDB 15 pin
(shared with PS2 keyboard and mouse) |
x 8 |
Screws Package
|
x 1
|
| External Power Adaptor |
x 1 |
User Manual
|
x 1
|
* Other languages available upon request | | | |
|
